Identify hardware - The guided tour

Start > HW installed > HW type known > Mainboard


Download BIOS Wizard to identify your BIOS by software

Please click company that your BIOS ID / logo matches best (look-a-like):
Company Sample BIOS ID Sample screen

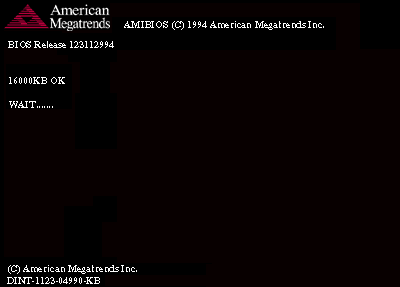

American Megatrends DINT-1123-04990-K8 (1986-1990) AMI BIOS / AMI BIOS plus

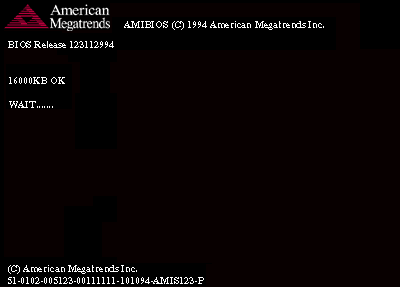

AMI HiFlex BIOS
AMI BIOS

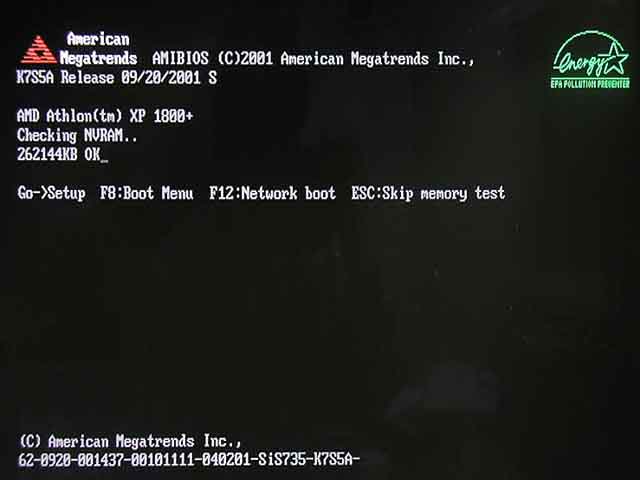

51-0102-1101-00111111-101094-AMIS123-P (1991-present)
Award 2A59IZ1DC-00 (short)
11/26/97 - I430TX-67x-2A59IBOBC-00 (long)
CGBIOS 3.01B
EliteBIOS v4.5
Modular BIOS v4.51PG
PowerBIOS v5.0
Modular BIOS v6.00PG
Medallion BIOS v6.0

Quadtel   VoiceBIOS
Phoenix Version 4.04 Rev. 1.05.842

picoBIOS

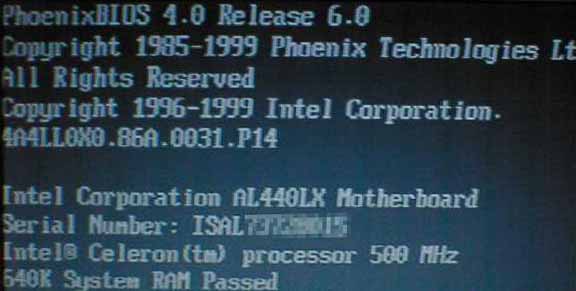

PhoenixBIOS 4 v6.0

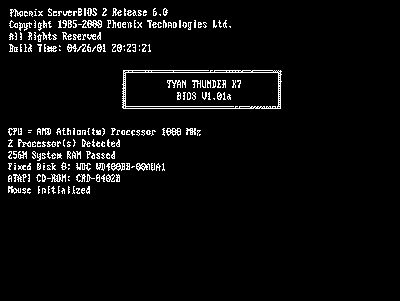

Phoenix ServerBIOS 2 v6.0
phoenixnet BIOS
ROM BIOS plus
Toshiba ACPI BIOS 7.20

Microid Research
SystemSoft 1.20.1.01 02-13-96-27 or
1.01 (24.82-00) - (R2.18_Q03)
SystemSoft BIOS

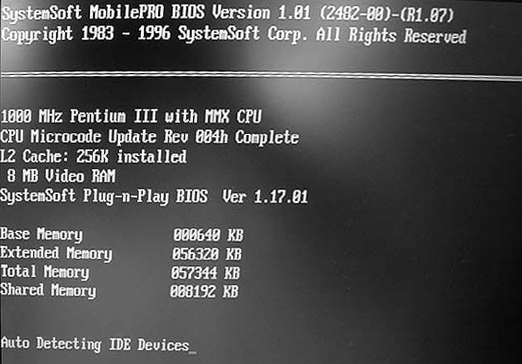

SystemSoft MobilePRO BIOS
intel 1.00.xx.AZ0x (AMI)
4A3NT0X0.86A.xxxx.P03.9704071222 (Phoenix) PhoenixBIOS 4 v6.0
IBM IRET64WW (Thinkpad 240)
IIET41WW (Thinkpad 770X)

ASUS 401A0 - xxxx (top left)
05/21/96-82430HX-PI55T2P4C-00 (bottom left)

Acer ACR6BE00-M00-941005-R02-F0
FUJ9CE00-M01-950724-R03-A1-F3
BIOS v1.2
BIOS v4.06

Help
Most manufacturers show a BIOS ID during boot of the computer on the display. Some BIOS vendors (IBM, MR BIOS, ...) show their logo instead.

To get the BIOS ID or BIOS vendor shut down your computer. Plug off your keyboard or hold down one of the keys on the keyboard. This will result in a BIOS error message on next power-on. On the lower left side of your screen a long string of numbers will be shown. This is the BIOS ID of your mainboard.
